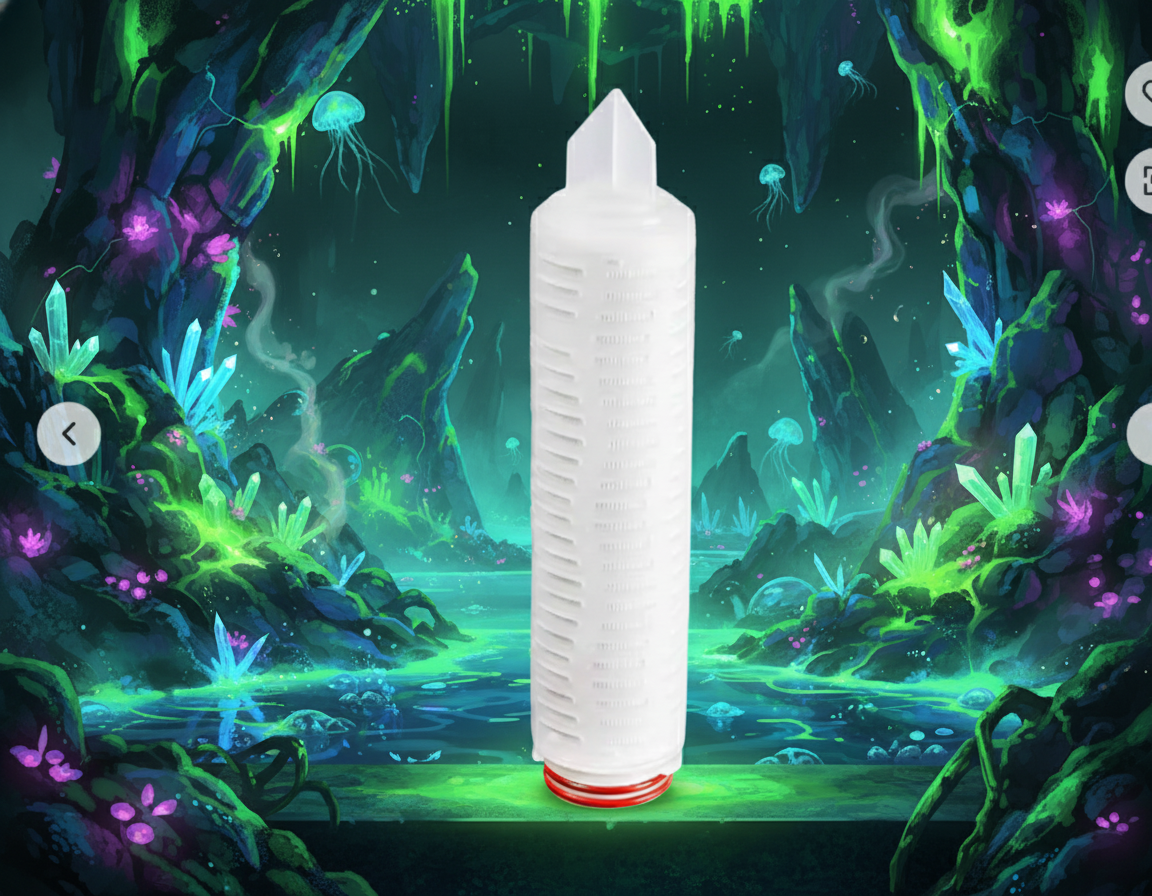

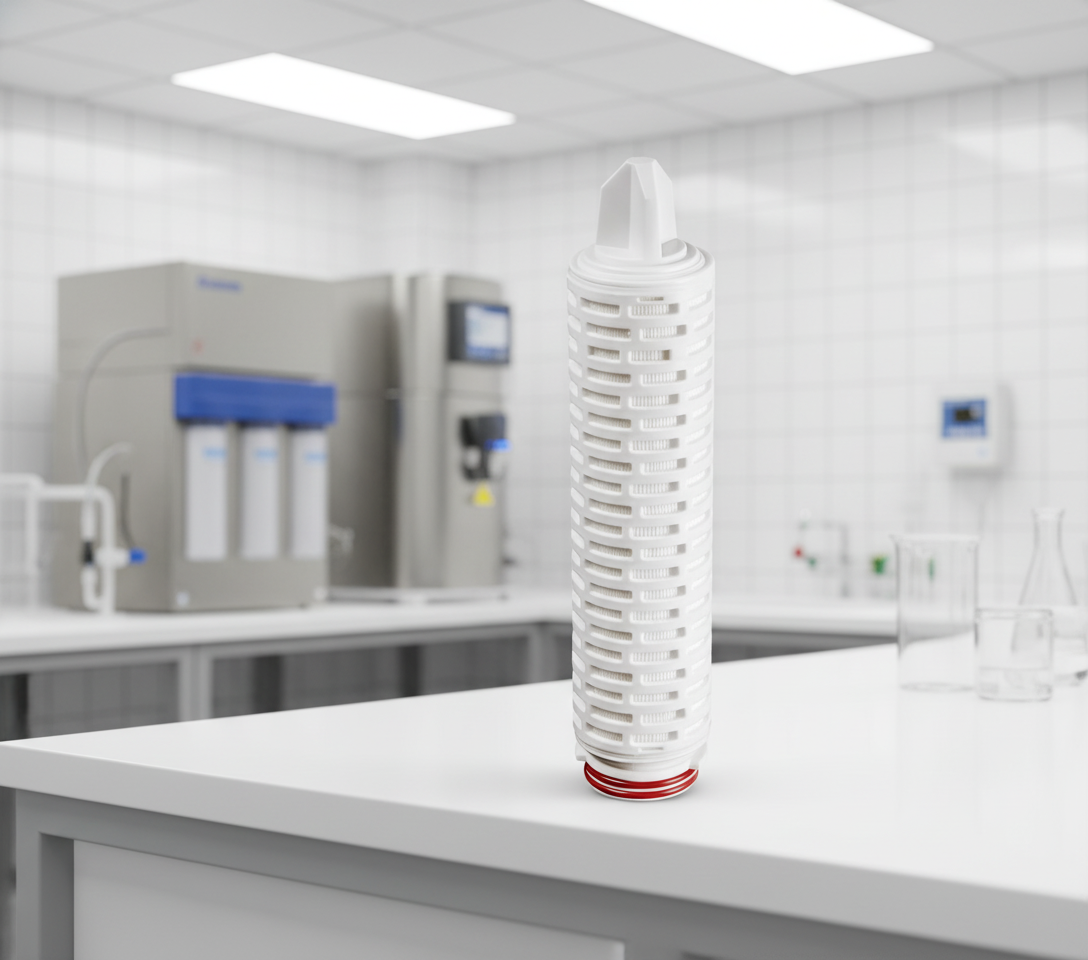

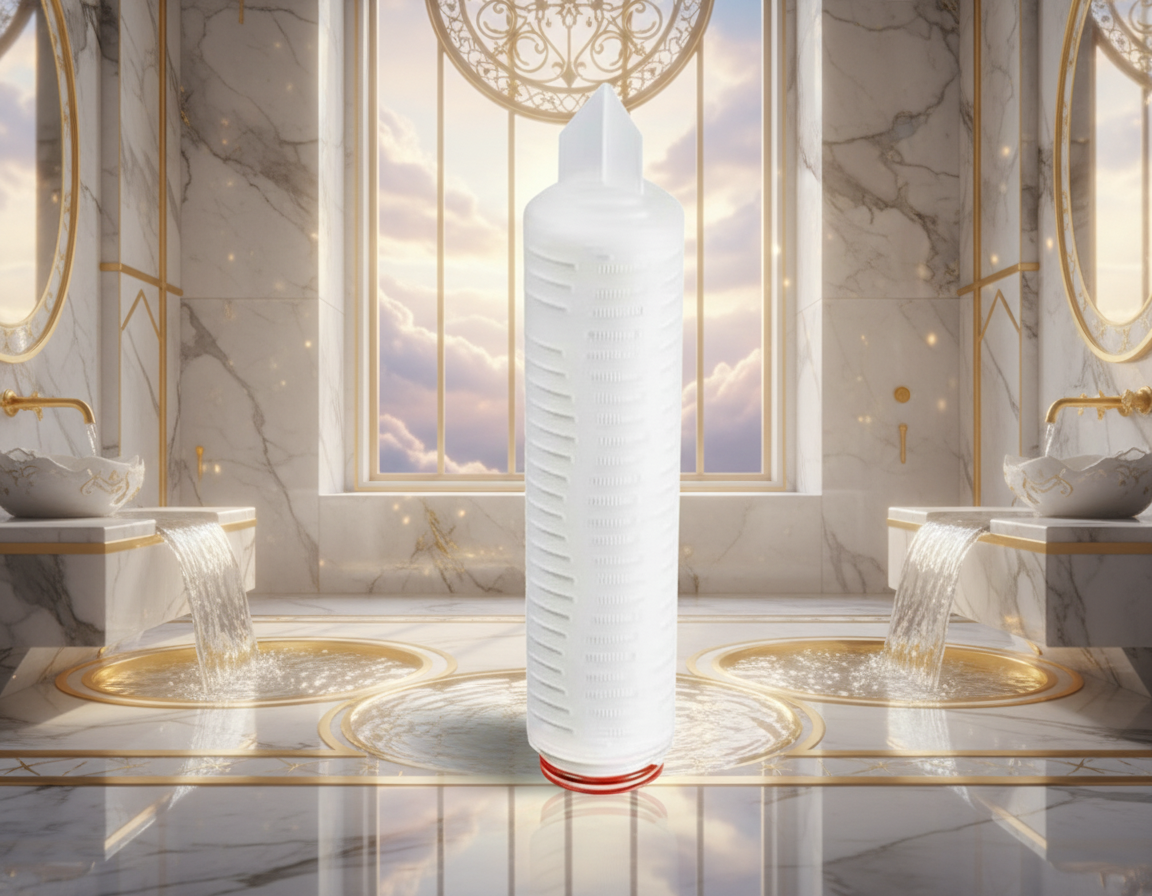

Hydrophilic PVDF Filter Cartridge

The Hydrophilic PVDF Filter Cartridge is designed for applications that require low protein adsorption, rapid wetting, and consistent flow performance. Its hydrophilic membrane makes it particularly well-suited for biological, pharmaceutical, and chemical processes where maintaining sample integrity is essential.

With a broad pH compatibility range of 3–10, this cartridge effectively handles acidic, alkaline, and mildly corrosive solutions. Offering strong chemical resistance at a cost-effective price point, it provides a reliable option for corrosive liquids, organic compounds, and a wide range of laboratory or production filtration needs.

⭐Key Attributes

• ⚙️ Processing Type: Filtration
• 💧 Productivity: 1000 L/Hour
• 🔩 Core Component: Hydrophilic PVDF Membrane

• ⚖️ Weight: 0.5 kg
• 🧬 Low Protein Adsorption — Ideal for biotech, laboratory, and pharmaceutical use.

• 🧴 Excellent Compatibility — Suitable for corrosive liquids and organic compounds.
• 🔬 Absolute Filtration Rating
  Ensures precise particle retention and consistent filtration quality.
• ⚗️ Exceptional Chemical Compatibility
  Ideal for aggressive acids, Handles both acidic and alkaline solutions, strong bases, pH 3–10 Chemical Stability, oxidizers, and a wide range of organic compounds.
• 💧 Hydrophilic PVDF Membrane
  Supports fast wetting, high flow rates, and stable performance in aqueous solutions.
• 🛡️ High-Purity Construction
  Hydrophilic membrane ensures fast wetting and stable flow rates. Suitable for critical applications requiring low extractables and consistent integrity.
• 💲 Economical Choice — Reliable performance at a lower cost than premium-name competitors.

📋 Applications

• 🧪 Protein solutions & biological samples
• ⚗️ Acids and bases within pH 3–10
• 🧴 Organic compound filtration
• 🧬 Laboratory & pharmaceutical processing
• 🧹 General-purpose chemical filtration

🏗️ Construction & Dimensions

• 🪶 Material: Polypropylene housing
• 🧱 Internal Support: PP or PP + stainless liner
• 🧱 Out Cage: PP
• 📐 Outer Diameter (OD): 68–69 mm
• 📏 Inner Diameter (ID): 32 mm
• 📏 Length Options: 2.5" to 40"
• 🫧 Pore Size Options: 0.10 μm, 0.22μm, 0.45 μm, 1 μm, 10 μm, 50 μm
• 📊 Effective Filtration Area: ≥ 0.60 m²

🌡️ Temperature & Pressure Ratings

• Normal Operating Temperature: ≤55°C
• Max Operating Temperature: 80°C (ΔP ≤ 0.10 MPa)

• Max Differential Pressure:
  ➤ Forward: 0.42 MPa @ 25°C
  ➤ Reverse: 0.21 MPa @ 25°C

🌟 Features & Benefits

• 🛡️ Ultra-Low Extractables
  High-quality core and cage materials, extremely low dissolved matter, maintaining product purity and stability.
• 🎛️ Flexible Filtration Options
  Available in single, double, and multi-layer membrane configurations, giving users more choices for performance, flow rate, and retention needs.
• 🔄 Universal Compatibility
  Multiple end-cap types allow seamless integration with a wide range of filter housings, making installation fast and versatile.
• 🔥 No Adhesive Contamination
  Thermally bonded construction eliminates the risk of adhesive pollutants, ensuring safe and clean filtration for sensitive applications.
• 🧼 Cleanroom Production Quality
  Manufactured in an ISO Class 8 cleanroom and rinsed with high-purity water, guaranteeing low particle shedding and high filtration integrity.
