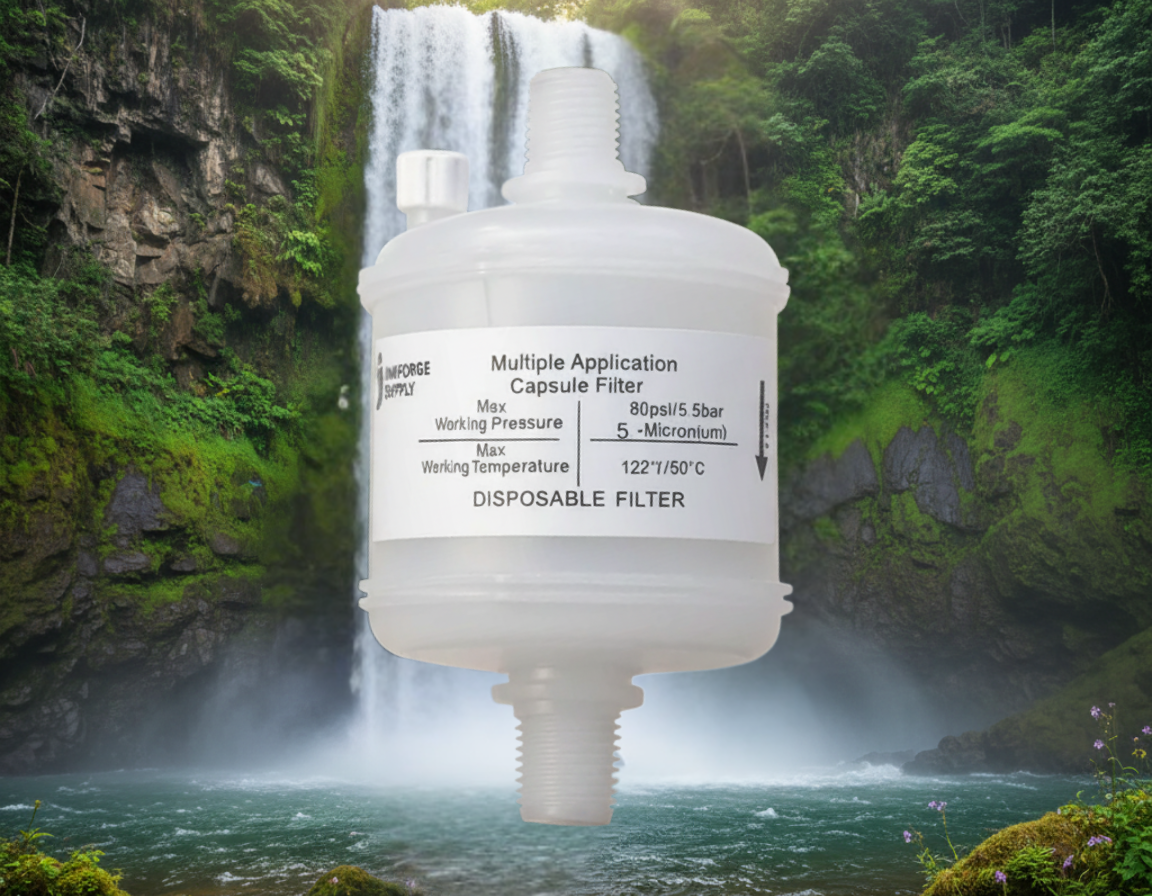

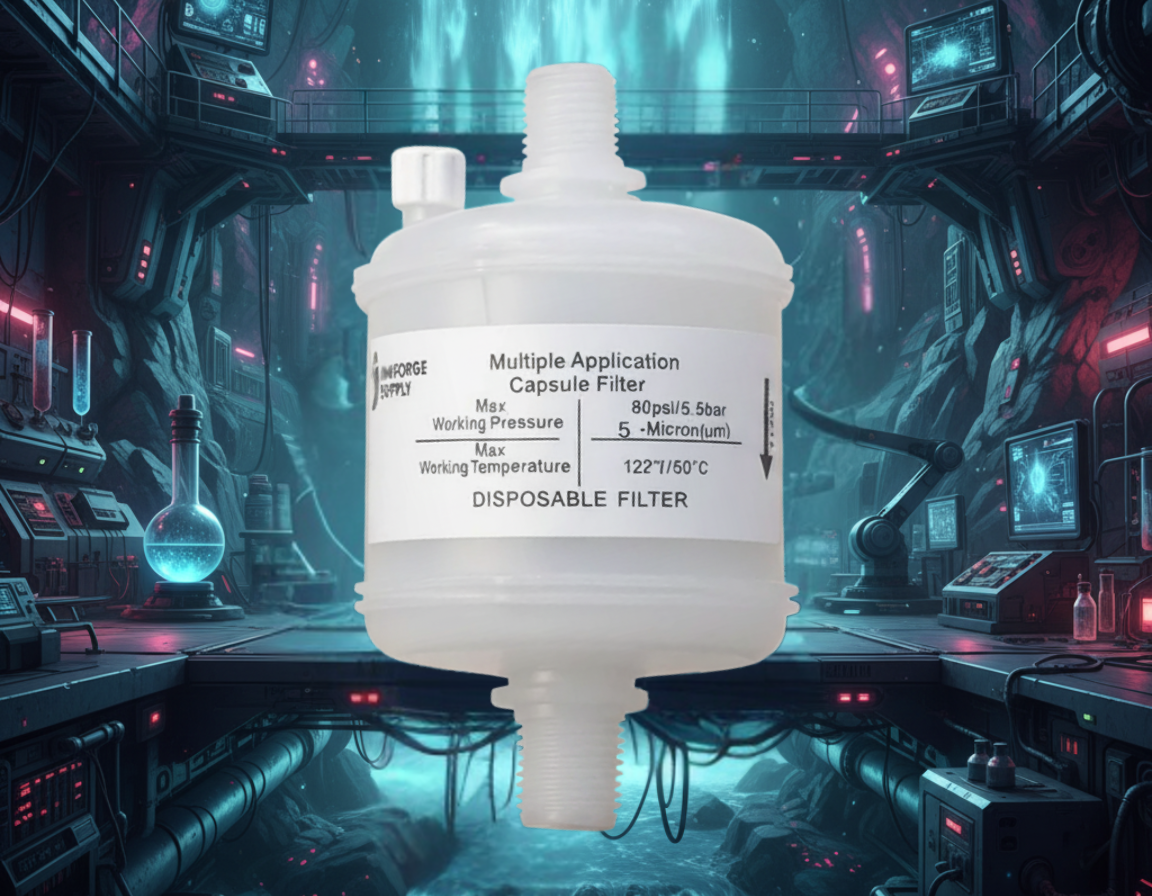

Hydrophilic White Capsule Filter (PTFE)

Overview

The PTFE Capsule Filter Cartridge is an absolute-rated, high-performance filtration solution engineered for high-purity and chemically demanding applications. Utilizing a hydrophilic PTFE membrane for excellent wettability and process compatibility, it delivers reliable particle and bacteria removal in aggressive chemical, laboratory, industrial, and water-processing environments.

Housed in durable polypropylene construction and available with advanced membrane options including PP, PVDF, PES, ACF, and NYLON. This capsule filter is built to perform in both dry and moist conditions. Designed for consistent flow, chemical resistance, and long service life, it ensures dependable filtration where precision and purity are critical.

Performance is on par with Cobetter® and Pall® capsule filters, offering comparable quality at a more economical cost.

⭐Key Attributes

• ⚙️ Processing Type: Filtration
• 💧 Productivity: 1000 L/Hour
• 🔩 Core Component: Hydrophilic PTFE Membrane

• ⚖️ Weight: 0.5 kg
• 🔬 Absolute Filtration Rating
  Ensures precise particle retention and consistent filtration quality.
• ⚗️ Exceptional Chemical Compatibility
  Ideal for aggressive acids, strong bases, oxidizers, and a wide range of organic compounds.
• 💧 Hydrophilic PTFE Membrane
  Supports fast wetting, high flow rates, and stable performance in aqueous solutions.
• 🛡️ High-Purity Construction
  Suitable for critical applications requiring low extractables and consistent integrity.
• 💲 Economical Choice — Reliable performance at a lower cost than premium-name competitors. (purchase 200 get +50 for free-Promo code: Free50)

🏗️ Construction & Dimensions

• 🪶 Material: Polypropylene housing
• 🧱 Internal Support: PP or PP + stainless liner
• 🧱 Out Cage: PP
• 📏 Length Options:  1.5", 2.5", 5", 7.5", 10", 20"
• 🫧 Pore Size Options: 0.10 μm, 0.22μm, 0.45 μm, 1 μm, 3 μm, 5 μm
• 📊 Effective Filtration Area: ≥ 0.60 m²

🌡️ Temperature & Pressure Ratings

• Normal Operating Temperature: ≤55°C
• Max Operating Temperature: 80°C (ΔP ≤ 0.10 MPa)
• Max Differential Pressure:
  ➤ Forward: 0.42 MPa @ 25°C
  ➤ Reverse: 0.21 MPa @ 25°C

🌟 Features & Benefits

• 🛡️ Ultra-Low Extractables
  High-quality core and cage materials, extremely low dissolved matter, maintaining product purity and stability.
• 🎛️ Flexible Filtration Options
  Available in single, double, and multi-layer membrane configurations, giving users more choices for performance, flow rate, and retention needs.
• 🔄 Universal Compatibility
  Multiple end-cap types allow seamless integration with a wide range of filter housings, making installation fast and versatile.
• 🔥 No Adhesive Contamination
  Thermally bonded construction eliminates the risk of adhesive pollutants, ensuring safe and clean filtration for sensitive applications.
• 🧼 Cleanroom Production Quality
  Manufactured in an ISO Class 8 cleanroom and rinsed with high-purity water, guaranteeing low particle shedding and high filtration integrity.
•  💰 Cost-effective; available in bulk packaging (purchase 200 get +50 free-Promo code: Free50)
•  ✔️ 100% integrity tested during manufacturing
•  🔢 Individually serialized for full traceability

📋 Applications

 Industrial & Chemical Processing

• 🏭 Filtration of aggressive acids, bases & solvents
• ⚙️ Chemical process stream clarification
• 🛠️ Protection of sensitive downstream equipment
• 🔄 High-purity utility and process fluids

Laboratory & Analytical

• 🧪 Sample preparation for aqueous & organic solutions

• 🔬 HPLC / LC-MS sample filtration

• 📊 Environmental and analytical water testing

• 🧫 Syringe & capsule filtration for lab workflows

Pharmaceutical & Biotech

• ⚗️ Sterile filtration of APIs and formulations

• 🧬 Aseptic processing & clean-in-place (CIP) systems

• 🧫 Buffer, media, and reagent filtration

• 🛡️ Low protein-binding filtration for critical purity

Water & Process Filtration

• 💧 Drinking and purified water filtration

• 🌊 Wastewater & effluent treatment

• 🧼 Process water clarification

• 🛡️ Fine particulate & bacteria removal

Food & Beverage Processing

• 🥤 Beverage clarification (beer, juice, process liquids)

• 🍶 Ingredient & additive filtration

• 🧼 Hygienic process water filtration

Medical & Healthcare

• 🩺 IV and infusion fluid filtration

• 🧬 Clinical and diagnostic sample prep

• 🛡️ Medical device and sterile fluid filtration

❓ FAQ

 🔎 What are these capsule filters used for?

• The Hydrophilic PTFE Capsule Filter Cartridge is a built filtration solution engineered for high-purity and chemically demanding applications.

 📌 Which micron size should I choose?

• 0.10 µm – Ultra-fine sterile filtration
• 0.22 µm – Sterile-grade filtration
• 0.45 µm – Fine particulate filtration
• 1 µm – Pre-filtration / particle reduction
• 3 µm – Coarse pre-filtration
• 5 µm – Fine filtration


 🧰 Which connection type should I select?

• CPC – Quick-connect
• Swagelok – Precision compression fittings
• Hose Barb – Flexible tubing
• 1/4" NPT

 ♻️ Are these reusable?

• No. These are single-use filters.

 🔥 Can they handle hot liquids or gases?

• Yes, up to 60°C. / 140F°

💎 Why Choose Filter Forge Supply

• 🏭 Built and tested in the United States
• 📄 ISO Certified manufacturing process
• 🚚 Fast delivery (3–5 Business days)
